HSS - ASTM A500 Square (HA) - HA127x127x13

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

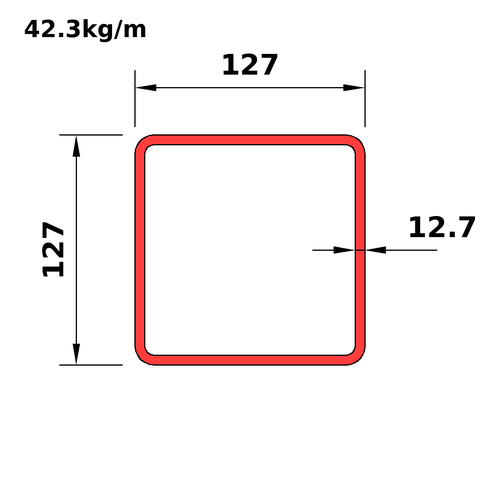

HA127x127x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA152x152x4.8
This section
HA127x127x13
Next
HA127x127x9.5

Dimensions

PropertyValue
Ds_iHA5x5x0.500
D127
B127
T12.7
Tdes11.43
RI11.43
RO22.86
Mass42.3
Wt_i28.4
A_Th4950

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA5x5x0.500
Mass42.3
Wt_i28.4
Prp*
Avl
Shp12
Use2
BT7.11
DT7.11
Dn_m127
A_Th4950
Ix10.6
Sx167
Rx46.3
Zx209
Iy10.6
Sy167
Ry46.3
Zy209
J18100
Crt1860
C300
SA0.469
Dn_i5
