HSS - ASTM A500 Rectangular (HA) - HA127x76x4.8

Rectangular Hollow Structural Sections to ASTM A500 are closed, cold-formed tube profiles used wherever a torsionally stiff, visually clean member is needed — exposed columns and canopy framing, truss chords, handrail and guard posts, and equipment supports. The closed section resists twisting far better than an open shape of similar weight, and the flat faces make welding gusset plates and connections straightforward. This family covers the full ASTM A500 rectangular range, from small architectural tube sizes up to heavy structural sections, each available as a free CAD block with complete dimensional and property data drawn from CISC 12.

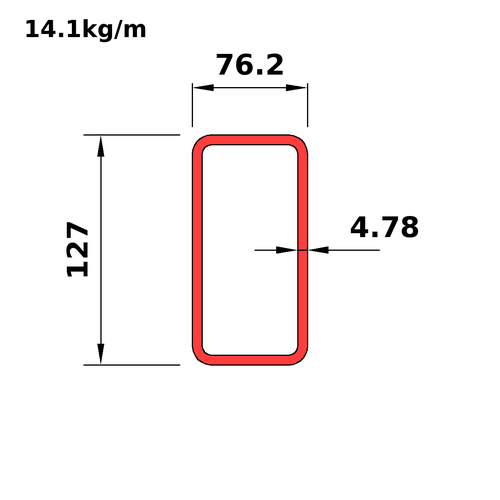

HA127x76x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA127x76x6.4
This section
HA127x76x4.8
Next
HA127x76x3.2

Dimensions

PropertyValue
Ds_iHA5x3x0.188
D127
B76.2
T4.78
Tdes4.3
RI4.3
RO8.6
Mass14.1
Wt_i9.45
A_Th1630

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA5x3x0.188
Mass14.1
Wt_i9.45
Prp
Avl
Shp13
Use2
BT13.72
DT25.53
Dn_m127
A_Th1630
Ix3.47
Sx54.6
Rx46.2
Zx67.4
Iy1.57
Sy41.2
Ry31.1
Zy47.3
J3510
Crt944
C75.6
SA0.392
Dn_i5

Full sortable table: Properties table for this category
