HSS - ASTM A500 Rectangular (HA) - HA152x102x13

Rectangular Hollow Structural Sections to ASTM A500 are closed, cold-formed tube profiles used wherever a torsionally stiff, visually clean member is needed — exposed columns and canopy framing, truss chords, handrail and guard posts, and equipment supports. The closed section resists twisting far better than an open shape of similar weight, and the flat faces make welding gusset plates and connections straightforward. This family covers the full ASTM A500 rectangular range, from small architectural tube sizes up to heavy structural sections, each available as a free CAD block with complete dimensional and property data drawn from CISC 12.

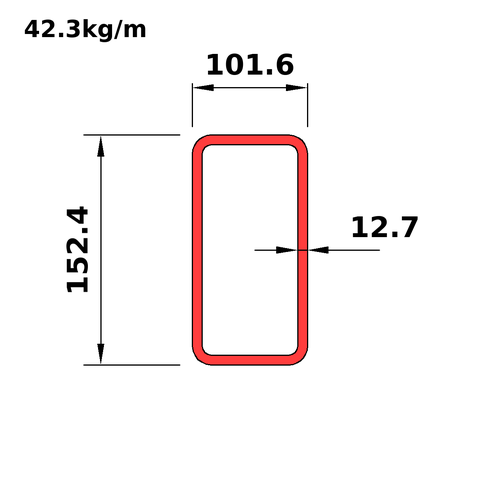

HA152x102x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA178x127x4.8
This section
HA152x102x13
Next
HA152x102x9.5

Dimensions

PropertyValue
Ds_iHA6x4x0.500
D152.4
B101.6
T12.7
Tdes11.43
RI11.43
RO22.86
Mass42.3
Wt_i28.4
A_Th4950

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA6x4x0.500
Mass42.3
Wt_i28.4
Prp*
Avl
Shp13
Use2
BT4.89
DT9.33
Dn_m152
A_Th4950
Ix13.9
Sx182
Rx52.9
Zx235
Iy7.26
Sy143
Ry38.3
Zy176
J16400
Crt2440
C285
SA0.469
Dn_i6

Full sortable table: Properties table for this category
