HSS - ASTM A500 Rectangular (HA) - HA203x102x13

Rectangular Hollow Structural Sections to ASTM A500 are closed, cold-formed tube profiles used wherever a torsionally stiff, visually clean member is needed — exposed columns and canopy framing, truss chords, handrail and guard posts, and equipment supports. The closed section resists twisting far better than an open shape of similar weight, and the flat faces make welding gusset plates and connections straightforward. This family covers the full ASTM A500 rectangular range, from small architectural tube sizes up to heavy structural sections, each available as a free CAD block with complete dimensional and property data drawn from CISC 12.

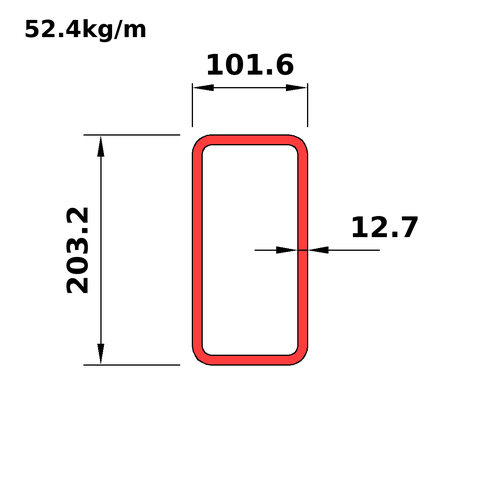

HA203x102x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA203x152x4.8
This section
HA203x102x13
Next
HA203x102x9.5

Dimensions

PropertyValue
Ds_iHA8x4x0.500
D203.2
B101.6
T12.7
Tdes11.43
RI11.43
RO22.86
Mass52.4
Wt_i35.2
A_Th6110

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA8x4x0.500
Mass52.4
Wt_i35.2
Prp*
Avl
Shp13
Use2
BT4.89
DT13.78
Dn_m203
A_Th6110
Ix29.2
Sx288
Rx69.2
Zx375
Iy9.63
Sy190
Ry39.7
Zy228
J24800
Crt3600
C390
SA0.57
Dn_i8

Full sortable table: Properties table for this category
