HSS - ASTM A500 Square (HA) - HA203x203x16

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

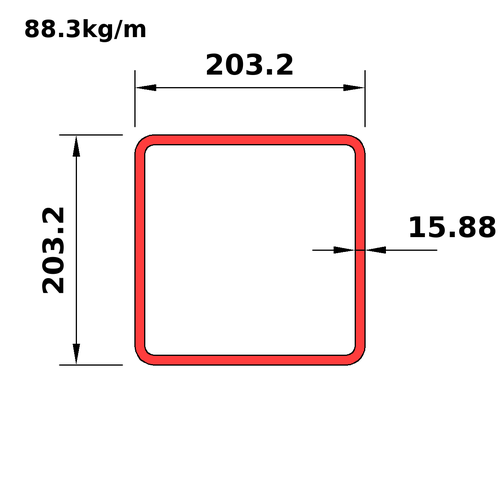

HA203x203x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA254x254x4.8
This section
HA203x203x16
Next
HA203x203x13

Dimensions

PropertyValue
Ds_iHA8x8x0.625
D203.2
B203.2
T15.88
Tdes14.29
RI14.29
RO28.58
Mass88.3
Wt_i59.3
A_Th10300

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA8x8x0.625
Mass88.3
Wt_i59.3
Prp*
Avl
Shp12
Use2
BT10.22
DT10.22
Dn_m203
A_Th10300
Ix59.5
Sx585
Rx76.1
Zx714
Iy59.5
Sy585
Ry76.1
Zy714
J99000
Crt4170
C1010
SA0.764
Dn_i8

Full sortable table: Properties table for this category
