HSS - ASTM A500 Rectangular (HA) - HA254x152x4.8

Rectangular Hollow Structural Sections to ASTM A500 are closed, cold-formed tube profiles used wherever a torsionally stiff, visually clean member is needed — exposed columns and canopy framing, truss chords, handrail and guard posts, and equipment supports. The closed section resists twisting far better than an open shape of similar weight, and the flat faces make welding gusset plates and connections straightforward. This family covers the full ASTM A500 rectangular range, from small architectural tube sizes up to heavy structural sections, each available as a free CAD block with complete dimensional and property data drawn from CISC 12.

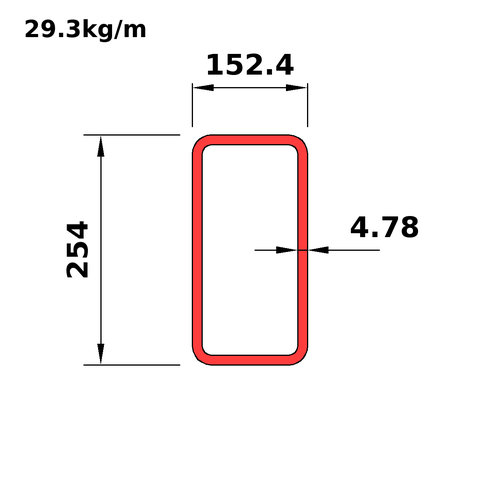

HA254x152x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA254x152x6.4
This section
HA254x152x4.8
Next
HA203x152x16

Dimensions

PropertyValue
Ds_iHA10x6x0.188
D254
B152.4
T4.78
Tdes4.3
RI4.3
RO8.6
Mass29.3
Wt_i19.7
A_Th3370

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA10x6x0.188
Mass29.3
Wt_i19.7
Prp
Avl
Shp13
Use2
BT31.44
DT55.07
Dn_m254
A_Th3370
Ix30.3
Sx238
Rx94.7
Zx287
Iy13.8
Sy182
Ry64.1
Zy203
J29900
Crt2040
C318
SA0.798
Dn_i10

Full sortable table: Properties table for this category
