HSS - ASTM A500 Square (HA) - HA254x254x13

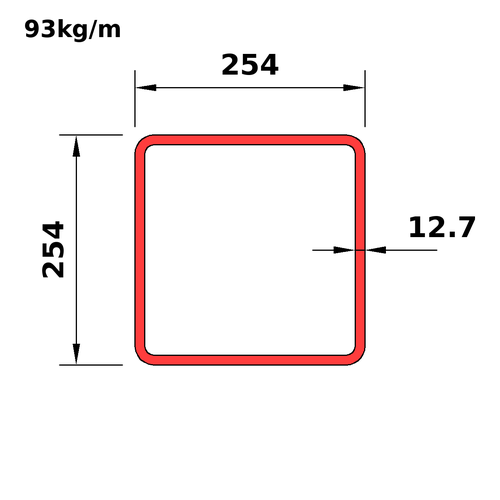

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

HA254x254x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA254x254x16
This section
HA254x254x13
Next
HA254x254x9.5

Dimensions

PropertyValue
Ds_iHA10x10x0.500
D254
B254
T12.7
Tdes11.43
RI11.43
RO22.86
Mass93
Wt_i62.5
A_Th10800

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA10x10x0.500
Mass93
Wt_i62.5
Prp
Avl
Shp12
Use2
BT18.22
DT18.22
Dn_m254
A_Th10800
Ix104
Sx817
Rx98.2
Zx968
Iy104
Sy817
Ry98.2
Zy968
J167000
Crt4760
C1340
SA0.977
Dn_i10

Full sortable table: Properties table for this category
