HSS - ASTM A500 Square (HA) - HA305x305x7.9

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

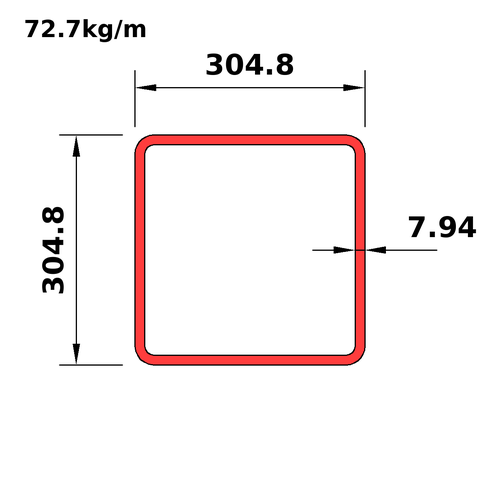

HA305x305x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA305x305x9.5
This section
HA305x305x7.9
Next
HA305x305x6.4

Dimensions

PropertyValue
Ds_iHA12x12x0.313
D304.8
B304.8
T7.94
Tdes7.15
RI7.15
RO14.3
Mass72.7
Wt_i48.9
A_Th8380

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA12x12x0.313
Mass72.7
Wt_i48.9
Prp
Avl
Shp12
Use2
BT38.63
DT38.63
Dn_m305
A_Th8380
Ix123
Sx806
Rx121
Zx930
Iy123
Sy806
Ry121
Zy930
J191000
Crt3950
C1270
SA1.19
Dn_i12

Full sortable table: Properties table for this category
