HSS - ASTM A500 Square (HA) - HA406x406x9.5

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

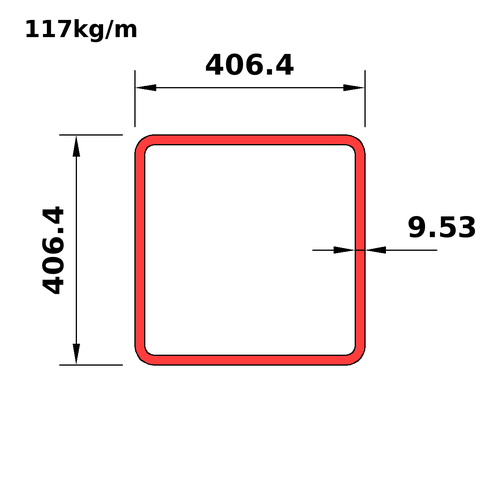

HA406x406x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA406x406x13
This section
HA406x406x9.5
Next
HA356x356x19

Dimensions

PropertyValue
Ds_iHA16x16x0.375
D406.4
B406.4
T9.53
Tdes8.58
RI8.58
RO17.16
Mass117
Wt_i78.5
A_Th13500

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA16x16x0.375
Mass117
Wt_i78.5
Prp
Avl+
Shp12
Use2
BT43.37
DT43.37
Dn_m406
A_Th13500
Ix353
Sx1740
Rx162
Zx2000
Iy353
Sy1740
Ry162
Zy2000
J547000
Crt6380
C2710
SA1.6
Dn_i16

Full sortable table: Properties table for this category
