HSS - ASTM A500 Square (HA) - HA508x508x25

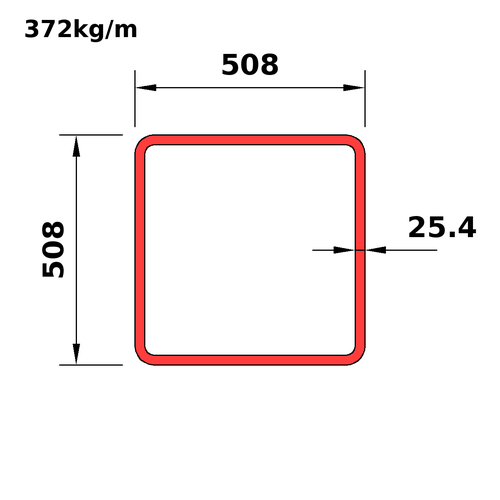

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

HA508x508x25
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA559x559x16
This section
HA508x508x25
Next
HA508x508x22

Dimensions

PropertyValue
Ds_iHA20x20x1.000
D508
B508
T25.4
Tdes22.86
RI22.86
RO45.72
Mass372
Wt_i250
A_Th43000

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA20x20x1.000
Mass372
Wt_i250
Prp*
Avl+
Shp12
Use2
BT18.22
DT18.22
Dn_m508
A_Th43000
Ix1660
Sx6540
Rx196
Zx7740
Iy1660
Sy6540
Ry196
Zy7740
J2670000
Crt19000
C10700
SA1.95
Dn_i20

Full sortable table: Properties table for this category
