HSS - CSA G40 Rectangular (HS) - HS102x51x9.5

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

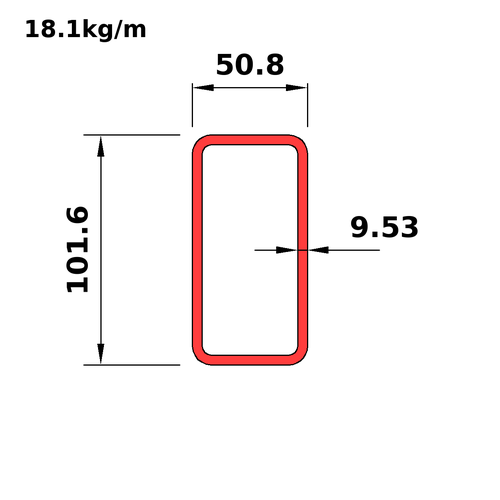

HS102x51x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS102x76x3.2
This section
HS102x51x9.5
Next
HS102x51x7.9

Dimensions

PropertyValue
Ds_iHS4x2x0.375
D101.6
B50.8
T9.53
Tdes9.53
RI9.53
RO19.06
Mass18.1
Wt_i12.2
A_Th2310

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS4x2x0.375
Mass18.1
Wt_i12.2
Prp*
Avl
Shp10
Use2
BT1.33
DT6.66
Dn_m102
A_Th2310
Ix2.39
Sx47.1
Rx32.2
Zx65.6
Iy0.762
Sy30
Ry18.2
Zy39.2
J2070
Crt1210
C69.1
SA0.272
Dn_i4

Full sortable table: Properties table for this category
