HSS - CSA G40 Round (HS) - HS102x6.4

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

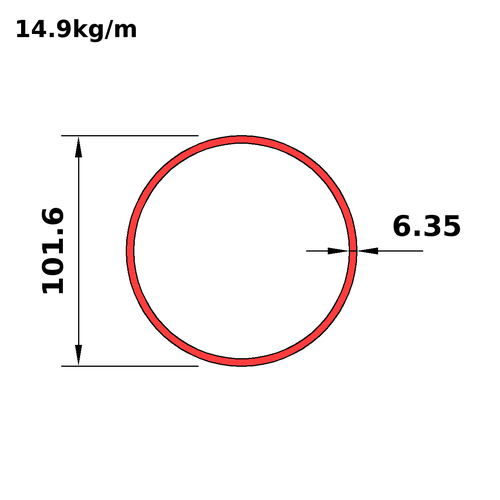

HS102x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS114x4.8
This section
HS102x6.4
Next
HS102x4.8

Dimensions

PropertyValue
Ds_iHS4x0.250
D101.6
T6.35
Tdes6.35
Mass14.9
Wt_i10
A_Th1900

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS4x0.250
Mass14.9
Wt_i10
Prp*
Avl+
Shp11
Use2
B
BT
DT16
Dn_m102
A_Th1900
Ix2.16
Sx42.6
Rx33.8
Zx57.7
Iy2.16
Sy42.6
Ry33.8
Zy57.7
J4330
Crt953
C85.2
SA0.319
Dn_i4

Full sortable table: Properties table for this category
