HSS - CSA G40 Square (HS) - HS127x127x9.5

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

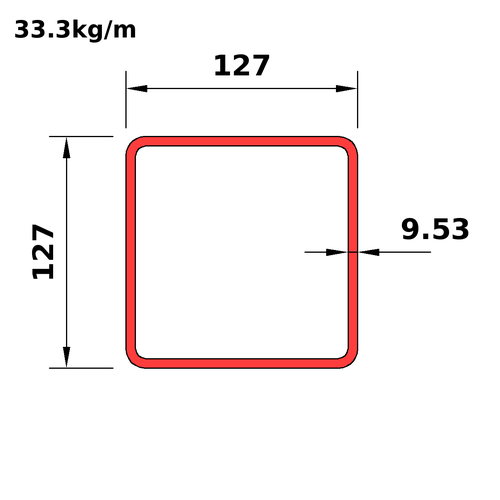

HS127x127x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x127x13
This section
HS127x127x9.5
Next
HS127x127x7.9

Dimensions

PropertyValue
Ds_iHS5x5x0.375
D127
B127
T9.53
Tdes9.53
RI9.53
RO19.06
Mass33.3
Wt_i22.4
A_Th4240

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x5x0.375
Mass33.3
Wt_i22.4
Prp
Avl
Shp9
Use2
BT9.33
DT9.33
Dn_m127
A_Th4240
Ix9.48
Sx149
Rx47.3
Zx183
Iy9.48
Sy149
Ry47.3
Zy183
J15900
Crt1690
C260
SA0.475
Dn_i5

Full sortable table: Properties table for this category
