HSS - CSA G40 Round (HS) - HS127x6.4

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

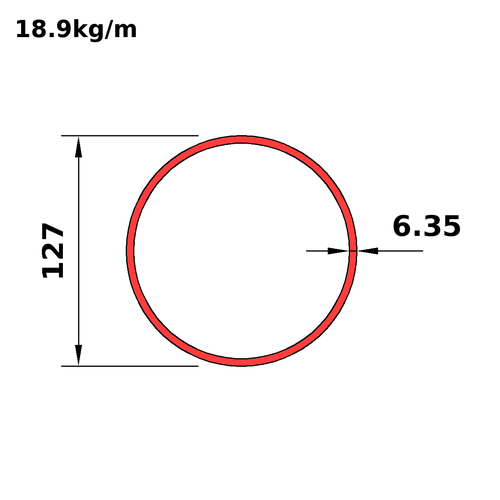

HS127x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x7.9
This section
HS127x6.4
Next
HS114x6.4

Dimensions

PropertyValue
Ds_iHS5x0.250
D127
T6.35
Tdes6.35
Mass18.9
Wt_i12.7
A_Th2410

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x0.250
Mass18.9
Wt_i12.7
Prp
Avl+
Shp11
Use2
B
BT
DT20
Dn_m127
A_Th2410
Ix4.39
Sx69.2
Rx42.7
Zx92.5
Iy4.39
Sy69.2
Ry42.7
Zy92.5
J8780
Crt1210
C138
SA0.399
Dn_i5
