HSS - CSA G40 Rectangular (HS) - HS127x76x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

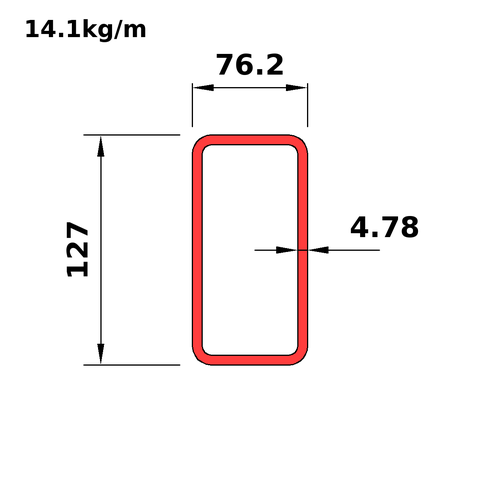

HS127x76x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS127x76x6.4
This section
HS127x76x4.8
Next
HS127x76x3.2

Dimensions

PropertyValue
Ds_iHS5x3x0.188
D127
B76.2
T4.78
Tdes4.78
RI4.78
RO9.56
Mass14.1
Wt_i9.45
A_Th1790

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x3x0.188
Mass14.1
Wt_i9.45
Prp
Avl
Shp10
Use2
BT11.94
DT22.57
Dn_m127
A_Th1790
Ix3.78
Sx59.6
Rx45.9
Zx73.8
Iy1.71
Sy44.8
Ry30.8
Zy51.8
J3850
Crt1030
C83
SA0.39
Dn_i5

Full sortable table: Properties table for this category
