HSS - CSA G40 Round (HS) - HS127x9.5

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

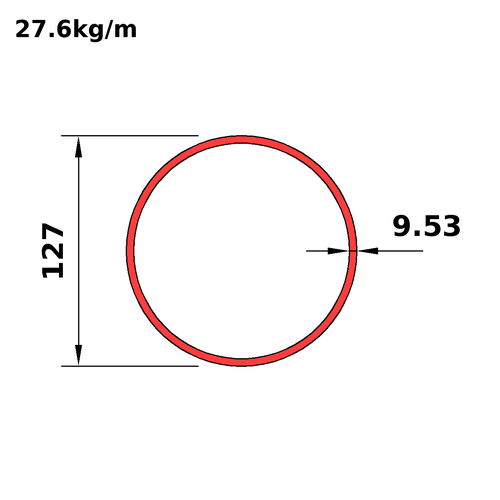

HS127x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS141x6.4
This section
HS127x9.5
Next
HS127x7.9

Dimensions

PropertyValue
Ds_iHS5x0.375
D127
T9.53
Tdes9.53
Mass27.6
Wt_i18.5
A_Th3520

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5x0.375
Mass27.6
Wt_i18.5
Prp*
Avl
Shp11
Use2
B
BT
DT13.33
Dn_m127
A_Th3520
Ix6.11
Sx96.2
Rx41.7
Zx132
Iy6.11
Sy96.2
Ry41.7
Zy132
J12200
Crt1770
C192
SA0.399
Dn_i5
