HSS - CSA G40 Round (HS) - HS141x9.5

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

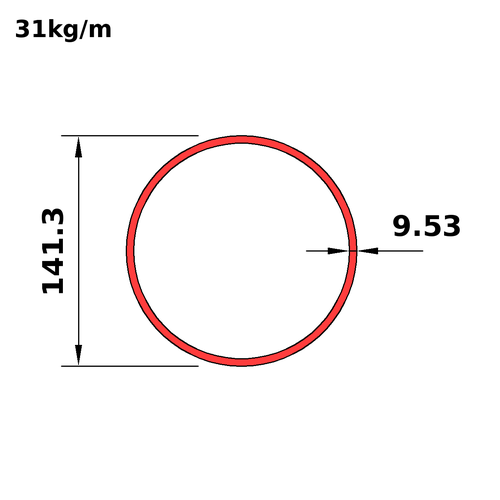

HS141x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS141x13
This section
HS141x9.5
Next
HS141x6.4

Dimensions

PropertyValue
Ds_iHS5.563x0.375
D141.3
T9.53
Tdes9.53
Mass31
Wt_i20.8
A_Th3950

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS5.563x0.375
Mass31
Wt_i20.8
Prp
Avl
Shp11
Use2
B
BT
DT14.83
Dn_m141
A_Th3950
Ix8.61
Sx122
Rx46.7
Zx166
Iy8.61
Sy122
Ry46.7
Zy166
J17200
Crt1980
C244
SA0.444
Dn_i5.563

Full sortable table: Properties table for this category
