HSS - CSA G40 Rectangular (HS) - HS152x102x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

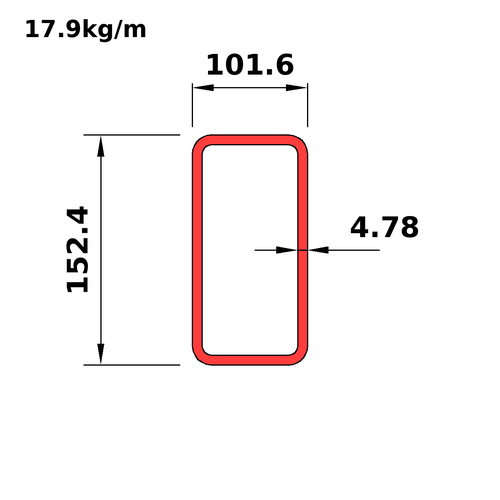

HS152x102x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x102x6.4
This section
HS152x102x4.8
Next
HS152x102x3.2

Dimensions

PropertyValue
Ds_iHS6x4x0.188
D152.4
B101.6
T4.78
Tdes4.78
RI4.78
RO9.56
Mass17.9
Wt_i12
A_Th2280

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x4x0.188
Mass17.9
Wt_i12
Prp
Avl
Shp10
Use2
BT17.26
DT27.88
Dn_m152
A_Th2280
Ix7.28
Sx95.6
Rx56.5
Zx116
Iy3.89
Sy76.6
Ry41.3
Zy87.8
J8150
Crt1270
C136
SA0.492
Dn_i6
