HSS - CSA G40 Square (HS) - HS152x152x13

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

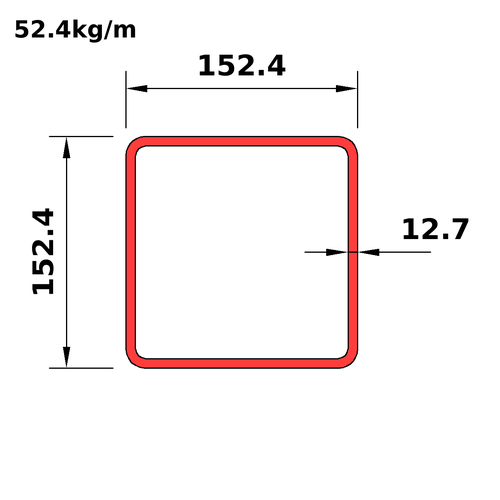

HS152x152x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS178x178x4.8
This section
HS152x152x13
Next
HS152x152x9.5

Dimensions

PropertyValue
Ds_iHS6x6x0.500
D152.4
B152.4
T12.7
Tdes12.7
RI12.7
RO25.4
Mass52.4
Wt_i35.2
A_Th6680

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x6x0.500
Mass52.4
Wt_i35.2
Prp*
Avl
Shp9
Use2
BT8
DT8
Dn_m152
A_Th6680
Ix21
Sx276
Rx56.1
Zx342
Iy21
Sy276
Ry56.1
Zy342
J35600
Crt2580
C488
SA0.566
Dn_i6
