HSS - CSA G40 Rectangular (HS) - HS152x76x13

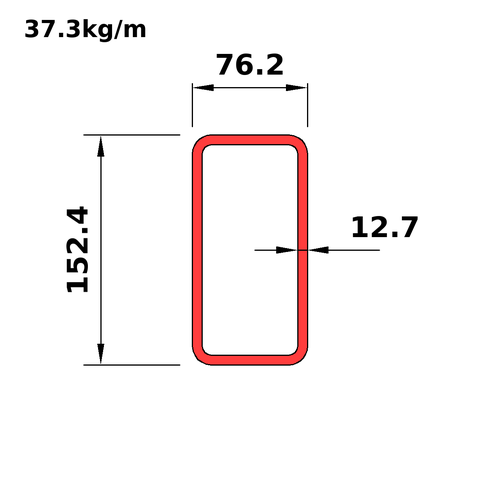

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

HS152x76x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x102x3.2
This section
HS152x76x13
Next
HS152x76x9.5

Dimensions

PropertyValue
Ds_iHS6x3x0.500
D152.4
B76.2
T12.7
Tdes12.7
RI12.7
RO25.4
Mass37.3
Wt_i25
A_Th4750

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x3x0.500
Mass37.3
Wt_i25
Prp*
Avl+
Shp10
Use2
BT2
DT8
Dn_m152
A_Th4750
Ix11.5
Sx152
Rx49.3
Zx207
Iy3.71
Sy97.3
Ry28
Zy124
J9960
Crt2580
C217
SA0.414
Dn_i6

Full sortable table: Properties table for this category
