HSS - CSA G40 Rectangular (HS) - HS152x76x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

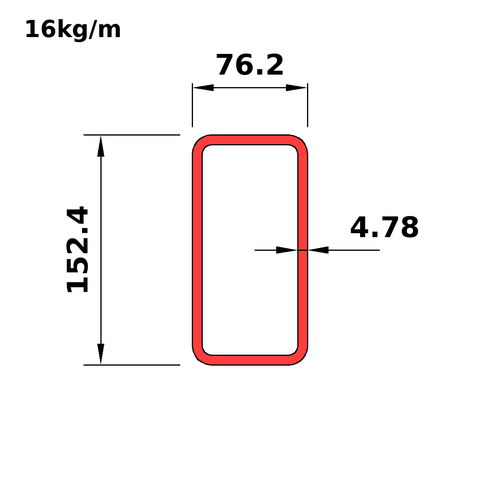

HS152x76x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS152x76x6.4
This section
HS152x76x4.8
Next
HS152x76x3.2

Dimensions

PropertyValue
Ds_iHS6x3x0.188
D152.4
B76.2
T4.78
Tdes4.78
RI4.78
RO9.56
Mass16
Wt_i10.7
A_Th2040

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6x3x0.188
Mass16
Wt_i10.7
Prp
Avl
Shp10
Use2
BT11.94
DT27.88
Dn_m152
A_Th2040
Ix5.96
Sx78.2
Rx54.1
Zx98.1
Iy2.02
Sy52.9
Ry31.5
Zy60.5
J4950
Crt1270
C100
SA0.441
Dn_i6

Full sortable table: Properties table for this category
