HSS - CSA G40 Round (HS) - HS168x9.5

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

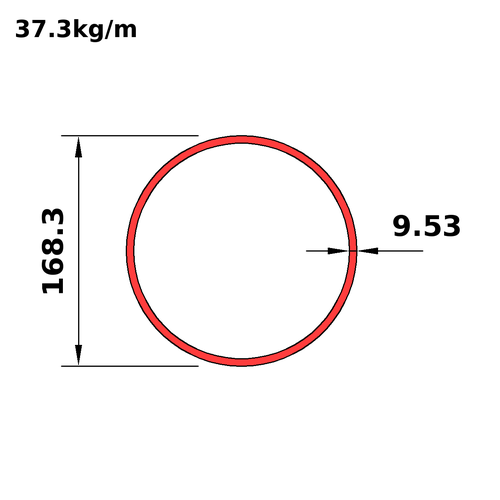

HS168x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS168x13
This section
HS168x9.5
Next
HS168x6.4

Dimensions

PropertyValue
Ds_iHS6.625x0.375
D168.3
T9.53
Tdes9.53
Mass37.3
Wt_i25.1
A_Th4750

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS6.625x0.375
Mass37.3
Wt_i25.1
Prp
Avl
Shp11
Use2
B
BT
DT17.66
Dn_m168
A_Th4750
Ix15
Sx179
Rx56.2
Zx241
Iy15
Sy179
Ry56.2
Zy241
J30100
Crt2380
C357
SA0.529
Dn_i6.625

Full sortable table: Properties table for this category
