HSS - CSA G40 Rectangular (HS) - HS178x127x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

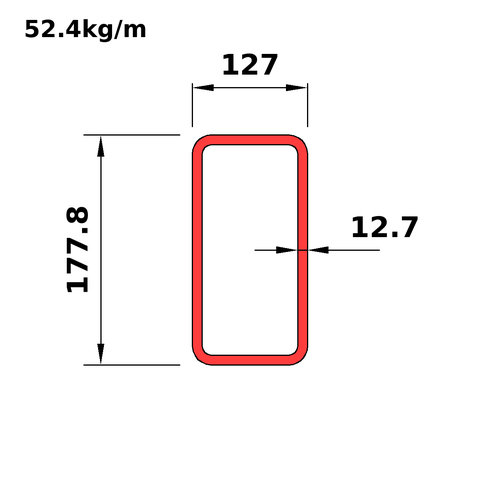

HS178x127x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x102x4.8
This section
HS178x127x13
Next
HS178x127x9.5

Dimensions

PropertyValue
Ds_iHS7x5x0.500
D177.8
B127
T12.7
Tdes12.7
RI12.7
RO25.4
Mass52.4
Wt_i35.2
A_Th6680

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x5x0.500
Mass52.4
Wt_i35.2
Prp*
Avl
Shp10
Use2
BT6
DT10
Dn_m178
A_Th6680
Ix26.4
Sx297
Rx62.9
Zx378
Iy15.5
Sy244
Ry48.1
Zy298
J33300
Crt3230
C471
SA0.566
Dn_i7

Full sortable table: Properties table for this category
