HSS - CSA G40 Rectangular (HS) - HS178x127x6.4

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

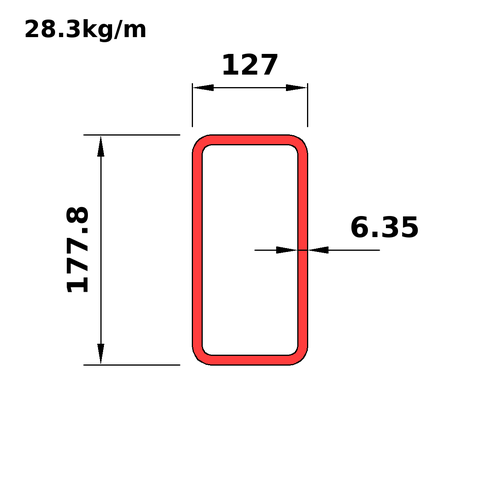

HS178x127x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS178x127x7.9
This section
HS178x127x6.4
Next
HS178x127x4.8

Dimensions

PropertyValue
Ds_iHS7x5x0.250
D177.8
B127
T6.35
Tdes6.35
RI6.35
RO12.7
Mass28.3
Wt_i19
A_Th3610

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x5x0.250
Mass28.3
Wt_i19
Prp
Avl
Shp10
Use2
BT16
DT24
Dn_m178
A_Th3610
Ix15.8
Sx178
Rx66.2
Zx216
Iy9.4
Sy148
Ry51.1
Zy171
J19000
Crt1940
C262
SA0.588
Dn_i7

Full sortable table: Properties table for this category
