HSS - CSA G40 Round (HS) - HS178x13

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

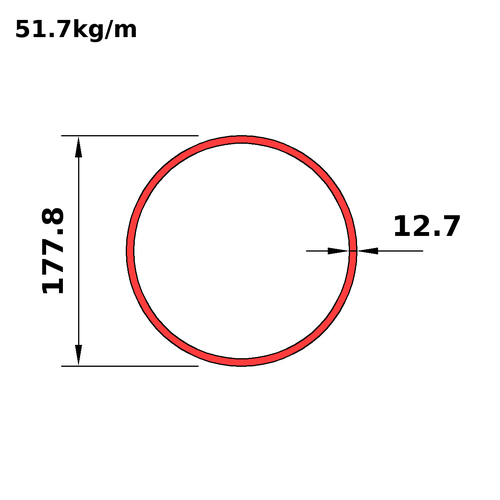

HS178x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS219x4.8
This section
HS178x13
Next
HS178x9.5

Dimensions

PropertyValue
Ds_iHS7x0.500
D177.8
T12.7
Tdes12.7
Mass51.7
Wt_i34.7
A_Th6590

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x0.500
Mass51.7
Wt_i34.7
Prp*
Avl+
Shp11
Use2
B
BT
DT14
Dn_m178
A_Th6590
Ix22.6
Sx254
Rx58.5
Zx347
Iy22.6
Sy254
Ry58.5
Zy347
J45200
Crt3310
C508
SA0.559
Dn_i7
