HSS - CSA G40 Square (HS) - HS178x178x6.4

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

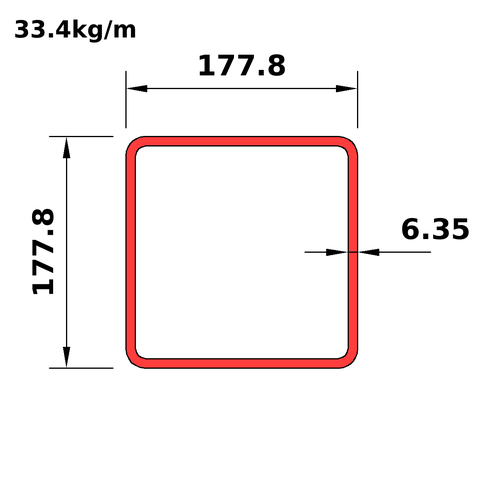

HS178x178x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS178x178x7.9
This section
HS178x178x6.4
Next
HS178x178x4.8

Dimensions

PropertyValue
Ds_iHS7x7x0.250
D177.8
B177.8
T6.35
Tdes6.35
RI6.35
RO12.7
Mass33.4
Wt_i22.4
A_Th4250

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS7x7x0.250
Mass33.4
Wt_i22.4
Prp
Avl
Shp9
Use2
BT24
DT24
Dn_m178
A_Th4250
Ix20.6
Sx231
Rx69.6
Zx271
Iy20.6
Sy231
Ry69.6
Zy271
J32600
Crt1940
C372
SA0.689
Dn_i7

Full sortable table: Properties table for this category
