HSS - CSA G40 Rectangular (HS) - HS203x102x6.4

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

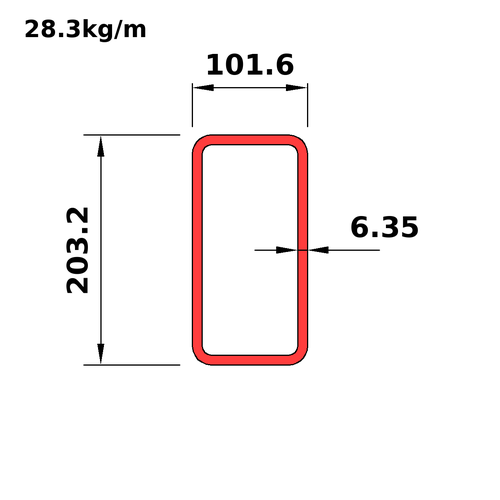

HS203x102x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS203x102x7.9
This section
HS203x102x6.4
Next
HS203x102x4.8

Dimensions

PropertyValue
Ds_iHS8x4x0.250
D203.2
B101.6
T6.35
Tdes6.35
RI6.35
RO12.7
Mass28.3
Wt_i19
A_Th3610

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x4x0.250
Mass28.3
Wt_i19
Prp
Avl
Shp10
Use2
BT12
DT28
Dn_m203
A_Th3610
Ix18.8
Sx185
Rx72.2
Zx232
Iy6.35
Sy125
Ry42
Zy143
J15600
Crt2260
C237
SA0.588
Dn_i8

Full sortable table: Properties table for this category
