HSS - CSA G40 Square (HS) - HS203x203x16

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

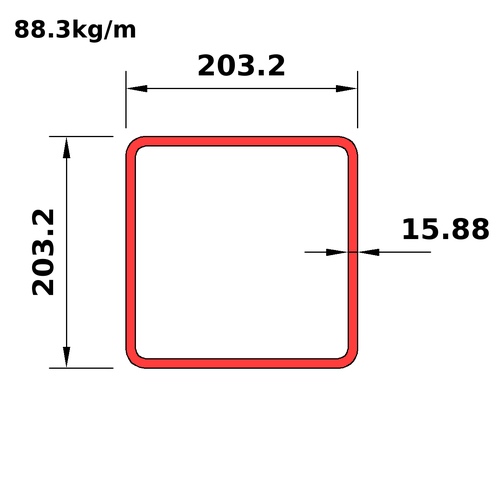

HS203x203x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x254x4.8
This section
HS203x203x16
Next
HS203x203x13

Dimensions

PropertyValue
Ds_iHS8x8x0.625
D203.2
B203.2
T15.88
Tdes15.88
RI15.88
RO31.76
Mass88.3
Wt_i59.3
A_Th11200

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS8x8x0.625
Mass88.3
Wt_i59.3
Prp*
Avl
Shp9
Use2
BT8.8
DT8.8
Dn_m203
A_Th11200
Ix63.8
Sx628
Rx75.3
Zx774
Iy63.8
Sy628
Ry75.3
Zy774
J107000
Crt4440
C1100
SA0.758
Dn_i8

Full sortable table: Properties table for this category
