HSS - CSA G40 Round (HS) - HS245x6.4

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

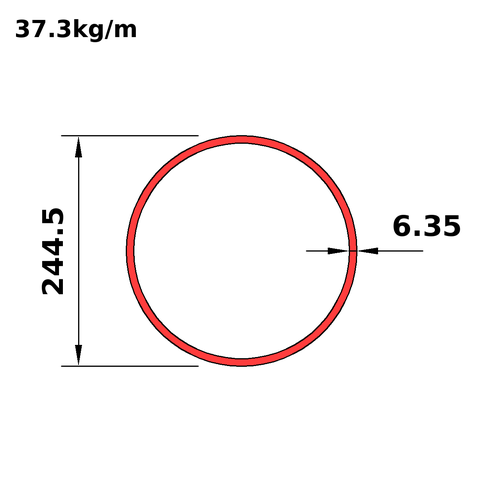

HS245x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS245x9.5
This section
HS245x6.4
Next
HS219x13

Dimensions

PropertyValue
Ds_iHS9.625x0.250
D244.5
T6.35
Tdes6.35
Mass37.3
Wt_i25.1
A_Th4750

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS9.625x0.250
Mass37.3
Wt_i25.1
Prp
Avl+
Shp11
Use2
B
BT
DT38.5
Dn_m245
A_Th4750
Ix33.7
Sx276
Rx84.2
Zx360
Iy33.7
Sy276
Ry84.2
Zy360
J67400
Crt2380
C551
SA0.768
Dn_i9.625
