HSS - CSA G40 Rectangular (HS) - HS254x203x16

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

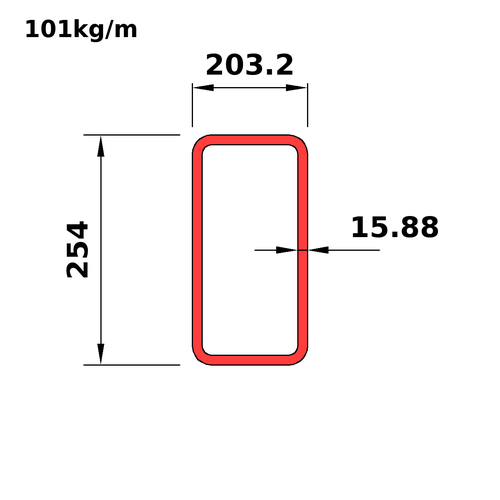

HS254x203x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS305x152x6.4
This section
HS254x203x16
Next
HS254x203x13

Dimensions

PropertyValue
Ds_iHS10x8x0.625
D254
B203.2
T15.88
Tdes15.88
RI15.88
RO31.76
Mass101
Wt_i67.8
A_Th12900

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10x8x0.625
Mass101
Wt_i67.8
Prp*
Avl
Shp10
Use2
BT8.8
DT11.99
Dn_m254
A_Th12900
Ix111
Sx872
Rx92.8
Zx1080
Iy78
Sy767
Ry77.9
Zy925
J153000
Crt6050
C1400
SA0.86
Dn_i10

Full sortable table: Properties table for this category
