HSS - CSA G40 Square (HS) - HS254x254x13

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

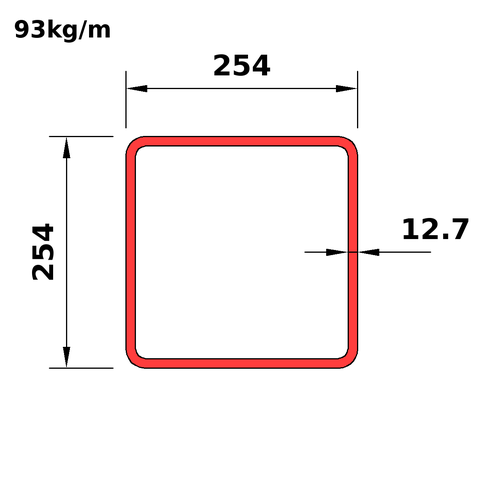

HS254x254x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS254x254x16
This section
HS254x254x13
Next
HS254x254x9.5

Dimensions

PropertyValue
Ds_iHS10x10x0.500
D254
B254
T12.7
Tdes12.7
RI12.7
RO25.4
Mass93
Wt_i62.5
A_Th11800

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10x10x0.500
Mass93
Wt_i62.5
Prp
Avl
Shp9
Use2
BT16
DT16
Dn_m254
A_Th11800
Ix113
Sx889
Rx97.6
Zx1060
Iy113
Sy889
Ry97.6
Zy1060
J183000
Crt5160
C1470
SA0.972
Dn_i10

Full sortable table: Properties table for this category
