HSS - CSA G40 Round (HS) - HS273x13

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

HS273x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS324x6.4
This section
HS273x13
Next
HS273x9.5

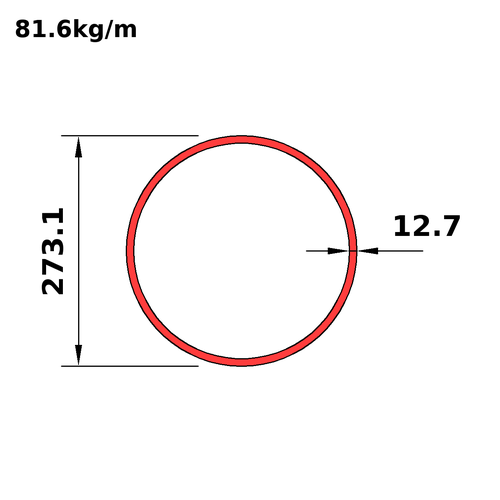

Dimensions

PropertyValue
Ds_iHS10.75x0.500
D273.1
T12.7
Tdes12.7
Mass81.6
Wt_i54.8
A_Th10400

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS10.75x0.500
Mass81.6
Wt_i54.8
Prp*
Avl
Shp11
Use2
B
BT
DT21.5
Dn_m273
A_Th10400
Ix88.3
Sx646
Rx92.2
Zx862
Iy88.3
Sy646
Ry92.2
Zy862
J177000
Crt5200
C1290
SA0.858
Dn_i10.75

Full sortable table: Properties table for this category
