HSS - CSA G40 Rectangular (HS) - HS305x203x7.9

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

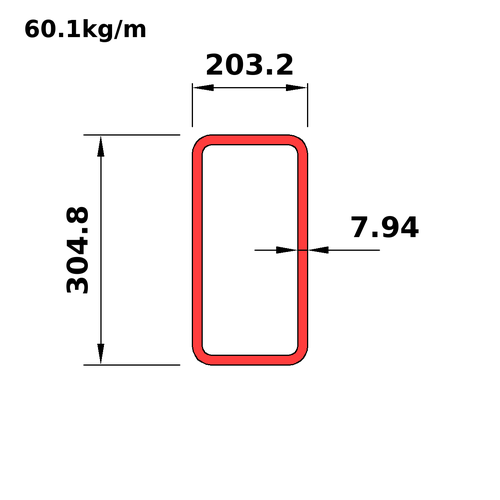

HS305x203x7.9
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS305x203x9.5
This section
HS305x203x7.9
Next
HS305x203x6.4

Dimensions

PropertyValue
Ds_iHS12x8x0.313
D304.8
B203.2
T7.94
Tdes7.94
RI7.94
RO15.88
Mass60.1
Wt_i40.4
A_Th7650

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS12x8x0.313
Mass60.1
Wt_i40.4
Prp
Avl
Shp10
Use2
BT21.59
DT34.39
Dn_m305
A_Th7650
Ix99.3
Sx652
Rx114
Zx786
Iy53.2
Sy524
Ry83.4
Zy596
J110000
Crt4340
C919
SA0.989
Dn_i12
