HSS - CSA G40 Square (HS) - HS305x305x13

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

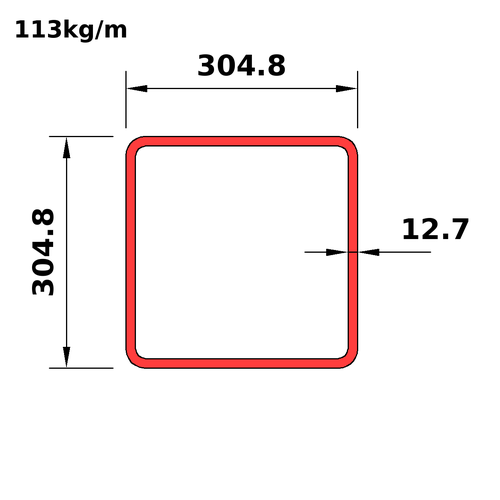

HS305x305x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS305x305x16
This section
HS305x305x13
Next
HS305x305x9.5

Dimensions

PropertyValue
Ds_iHS12x12x0.500
D304.8
B304.8
T12.7
Tdes12.7
RI12.7
RO25.4
Mass113
Wt_i76.1
A_Th14400

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS12x12x0.500
Mass113
Wt_i76.1
Prp
Avl
Shp9
Use2
BT20
DT20
Dn_m305
A_Th14400
Ix202
Sx1330
Rx118
Zx1560
Iy202
Sy1330
Ry118
Zy1560
J323000
Crt6450
C2160
SA1.18
Dn_i12
