HSS - CSA G40 Square (HS) - HS38x38x4.8

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

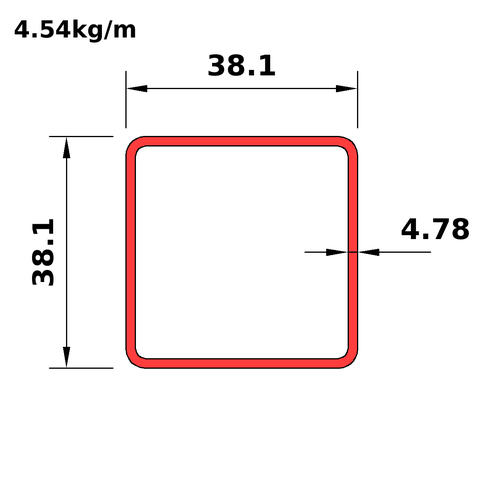

HS38x38x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS51x51x3.2
This section
HS38x38x4.8
Next
HS38x38x3.2

Dimensions

PropertyValue
Ds_iHS1.5x1.5x0.188
D38.1
B38.1
T4.78
Tdes4.78
RI4.78
RO9.56
Mass4.54
Wt_i3.05
A_Th578

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS1.5x1.5x0.188
Mass4.54
Wt_i3.05
Prp*
Avl
Shp9
Use2
BT3.97
DT3.97
Dn_m38
A_Th578
Ix0.101
Sx5.3
Rx13.2
Zx6.95
Iy0.101
Sy5.3
Ry13.2
Zy6.95
J180
Crt181
C10.2
SA0.136
Dn_i1.5
