HSS - CSA G40 Rectangular (HS) - HS406x305x13

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

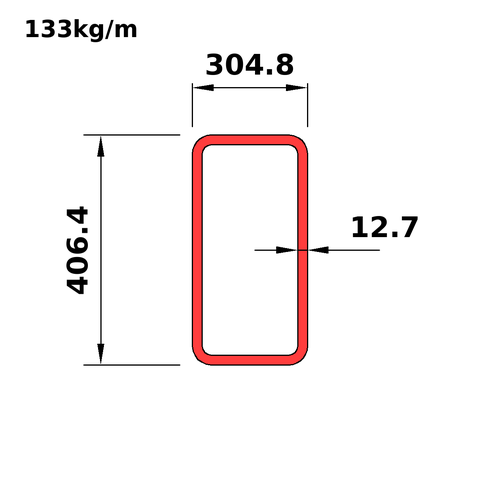

HS406x305x13
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS406x305x16
This section
HS406x305x13
Next
HS356x254x19

Dimensions

PropertyValue
Ds_iHS16x12x0.500
D406.4
B304.8
T12.7
Tdes12.7
RI12.7
RO25.4
Mass133
Wt_i89.7
A_Th17000

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS16x12x0.500
Mass133
Wt_i89.7
Prp
Avl+
Shp10
Use2
BT20
DT28
Dn_m406
A_Th17000
Ix400
Sx1970
Rx153
Zx2360
Iy257
Sy1690
Ry123
Zy1940
J499000
Crt9030
C2910
SA1.38
Dn_i16

Full sortable table: Properties table for this category
