HSS - CSA G40 Square (HS) - HS559x559x22

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

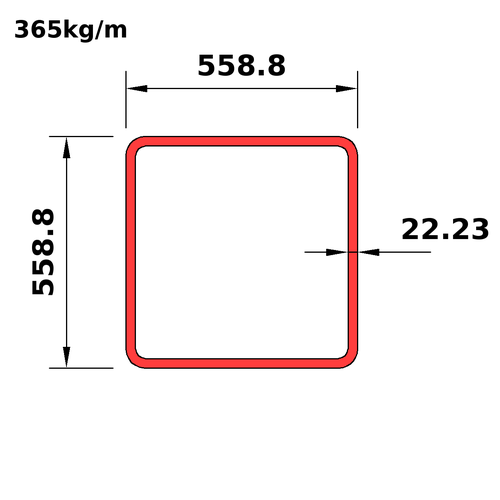

HS559x559x22
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS559x559x25
This section
HS559x559x22
Next
HS559x559x19

Dimensions

PropertyValue
Ds_iHS22x22x0.875
D558.8
B558.8
T22.23
Tdes22.23
RI22.23
RO44.46
Mass365
Wt_i245
A_Th46400

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS22x22x0.875
Mass365
Wt_i245
Prp
Avl+
Shp9
Use2
BT21.14
DT21.14
Dn_m559
A_Th46400
Ix2200
Sx7860
Rx218
Zx9260
Iy2200
Sy7860
Ry218
Zy9260
J3500000
Crt20900
C12800
SA2.16
Dn_i22

Full sortable table: Properties table for this category
