HSS - CSA G40 Round (HS) - HS64x6.4

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

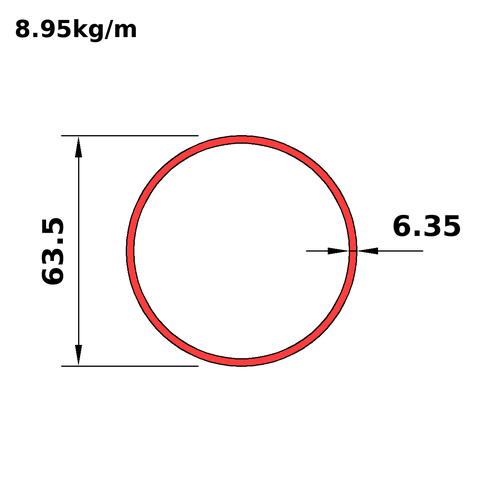

HS64x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS73x3.2
This section
HS64x6.4
Next
HS64x4.8

Dimensions

PropertyValue
Ds_iHS2.5x0.250
D63.5
T6.35
Tdes6.35
Mass8.95
Wt_i6.01
A_Th1140

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS2.5x0.250
Mass8.95
Wt_i6.01
Prp*
Avl
Shp11
Use2
B
BT
DT10
Dn_m64
A_Th1140
Ix0.471
Sx14.8
Rx20.3
Zx20.8
Iy0.471
Sy14.8
Ry20.3
Zy20.8
J942
Crt575
C29.7
SA0.199
Dn_i2.5
