HSS - CSA G40 Rectangular (HS) - HS76x51x4.8

Rectangular Hollow Structural Sections to CSA G40.21 are the Canadian-grade counterpart to ASTM A500 rectangular HSS, and are widely specified across Canada for columns, truss chords, canopy and mezzanine framing, and any application needing a torsionally stiff member with flat faces for easy connections. The rectangular profile is efficient where bending governs in one direction more than the other, letting the deeper dimension do the work. Every section in this CSA G40 rectangular family is available as a free CAD block, with full dimensional and property data from CISC 12.

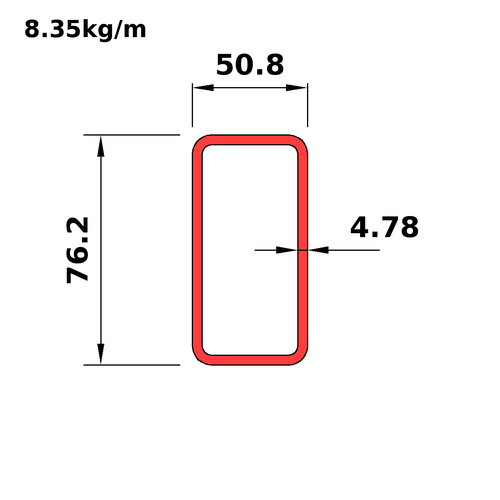

HS76x51x4.8
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS76x51x6.4
This section
HS76x51x4.8
Next
HS76x51x3.2

Dimensions

PropertyValue
Ds_iHS3x2x0.188
D76.2
B50.8
T4.78
Tdes4.78
RI4.78
RO9.56
Mass8.35
Wt_i5.61
A_Th1060

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3x2x0.188
Mass8.35
Wt_i5.61
Prp
Avl
Shp10
Use2
BT6.63
DT11.94
Dn_m76
A_Th1060
Ix0.775
Sx20.3
Rx27
Zx25.8
Iy0.408
Sy16.1
Ry19.6
Zy19.4
J903
Crt546
C31
SA0.238
Dn_i3

Full sortable table: Properties table for this category
