HSS - CSA G40 Square (HS) - HS76x76x6.4

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

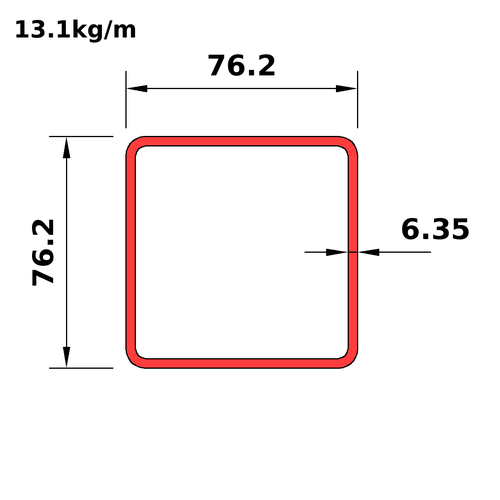

HS76x76x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS76x76x7.9
This section
HS76x76x6.4
Next
HS76x76x4.8

Dimensions

PropertyValue
Ds_iHS3x3x0.250
D76.2
B76.2
T6.35
Tdes6.35
RI6.35
RO12.7
Mass13.1
Wt_i8.81
A_Th1670

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3x3x0.250
Mass13.1
Wt_i8.81
Prp
Avl
Shp9
Use2
BT8
DT8
Dn_m76
A_Th1670
Ix1.31
Sx34.5
Rx28
Zx42.8
Iy1.31
Sy34.5
Ry28
Zy42.8
J2230
Crt645
C61
SA0.283
Dn_i3

Full sortable table: Properties table for this category
