HSS - CSA G40 Round (HS) - HS89x6.4

Round Hollow Structural Sections to CSA G40.21 are the Canadian-grade circular HSS family, used throughout Canada for columns, bracing, handrails, and any structure where equal strength in all directions and a clean circular profile are wanted. Their closed shape gives efficient resistance to buckling for a given weight of steel, and the round profile is a common architectural choice for exposed steelwork. The full CSA G40 round range is available here as free CAD blocks, with outside diameter and wall thickness data from CISC 12.

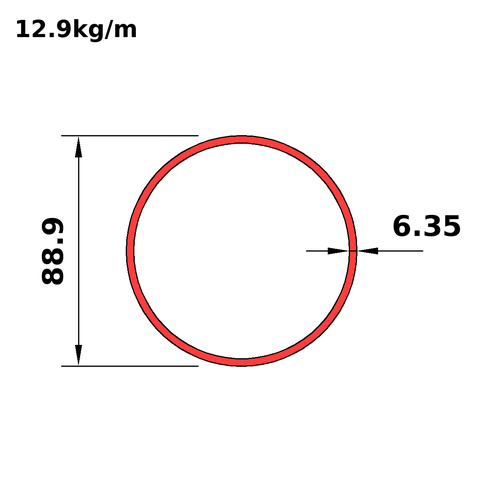

HS89x6.4
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS102x4.8
This section
HS89x6.4
Next
HS89x4.8

Dimensions

PropertyValue
Ds_iHS3.5x0.250
D88.9
T6.35
Tdes6.35
Mass12.9
Wt_i8.69
A_Th1650

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3.5x0.250
Mass12.9
Wt_i8.69
Prp*
Avl
Shp11
Use2
B
BT
DT14
Dn_m89
A_Th1650
Ix1.41
Sx31.7
Rx29.3
Zx43.4
Iy1.41
Sy31.7
Ry29.3
Zy43.4
J2820
Crt827
C63.5
SA0.279
Dn_i3.5
