HSS - CSA G40 Square (HS) - HS89x89x9.5

Square Hollow Structural Sections to CSA G40.21 are the Canadian-grade square HSS family — a closed, symmetrical profile that resists bending equally about both axes and offers strong torsional performance for columns, bracing and truss members. Their flat faces make them easy to weld and bolt, and their clean lines are a popular choice for exposed architectural steel as well as everyday framing. Every section in this CSA G40 square family is available as a free CAD block, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

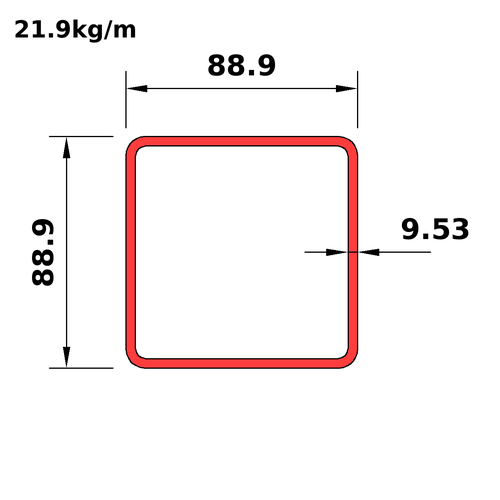

HS89x89x9.5
Select ZIP download

Select DWG download

Nearby Sections

Previous
HS102x102x3.2
This section
HS89x89x9.5
Next
HS89x89x7.9

Dimensions

PropertyValue
Ds_iHS3.5x3.5x0.375
D88.9
B88.9
T9.53
Tdes9.53
RI9.53
RO19.06
Mass21.9
Wt_i14.7
A_Th2790

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHS3.5x3.5x0.375
Mass21.9
Wt_i14.7
Prp*
Avl
Shp9
Use2
BT5.33
DT5.33
Dn_m89
A_Th2790
Ix2.8
Sx63
Rx31.7
Zx80.5
Iy2.8
Sy63
Ry31.7
Zy80.5
J4880
Crt968
C117
SA0.323
Dn_i3.5

Full sortable table: Properties table for this category
