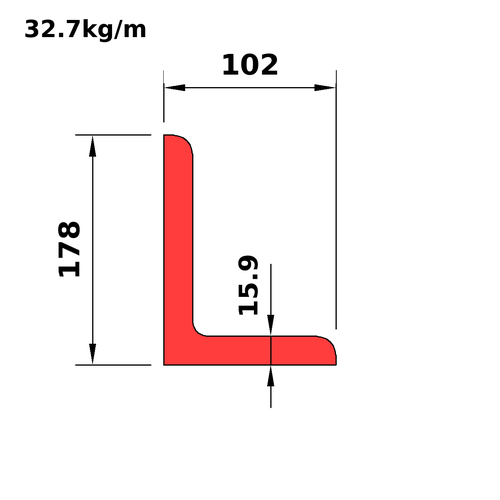

Unequal Angles (L) - L178x102x16

Unequal Leg Angles pair a longer and a shorter leg in a single L-shaped section, giving designers a way to bias strength toward one direction without the weight of a symmetrical shape. They're widely used in bracing, truss members, ledger angles and lintels where the load path favours one axis, and in connections where one leg needs to sit flush against a different element than the other. Every unequal angle in the CISC 12 range is available here as a free CAD block, with full dimension and property data included.
