Miscellaneous Channels (MC) - MC100x20.5
Miscellaneous Channels sit alongside the Standard Channel series, filling in section sizes and proportions the C-series doesn't cover. Like standard channels, they offer a stiff, one-sided flange profile useful for framing, purlins, edge trim, and paired back-to-back box sections — MC shapes simply extend the range of depths and weights available to designers. Every MC shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data included.
Nearby Sections

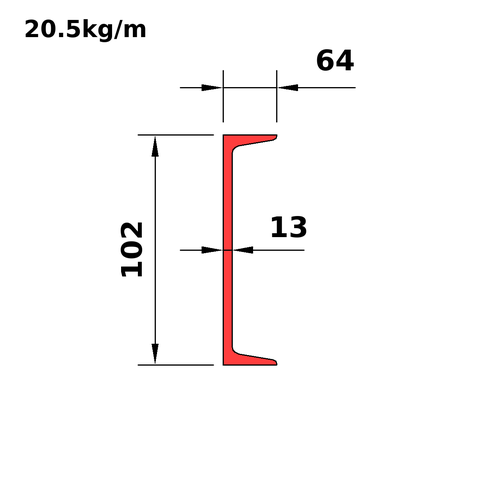

Dimensions
| Property | Value |
|---|---|
| Ds_i | MC4x13.8 |
| D | 102 |
| B | 64 |
| T | 13 |
| W | 13 |
| K | 25 |
| Slp | 0.1667 |
| Mass | 20.5 |
| Wt_i | 13.8 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | MC4x13.8 |
| Mass | 20.5 |
| Wt_i | 13.8 |
| Prp | * |
| Avl | |
| Shp | 6 |
| Grp | 1 |
| Use | 3 |
| BT | 4.92 |
| HW | 5.85 |
| Dn_m | 100 |
| A_A6 | 2594 |
| A_Th | 2650 |
| Ix | 3.78 |
| Sx | 74.1 |
| Rx | 37.7 |
| Iy | 0.882 |
| Sy | 20.7 |
| Ry | 18.2 |
| X | 21.3 |
| J | 164 |
| Cw | 1.35 |
| Xo | 37.7 |
| SA | 0.434 |
| Dn_i | 4 |
Full sortable table: Properties table for this category
