Miscellaneous Channels (MC) - MC200x27.8
Miscellaneous Channels sit alongside the Standard Channel series, filling in section sizes and proportions the C-series doesn't cover. Like standard channels, they offer a stiff, one-sided flange profile useful for framing, purlins, edge trim, and paired back-to-back box sections — MC shapes simply extend the range of depths and weights available to designers. Every MC shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data included.
Nearby Sections

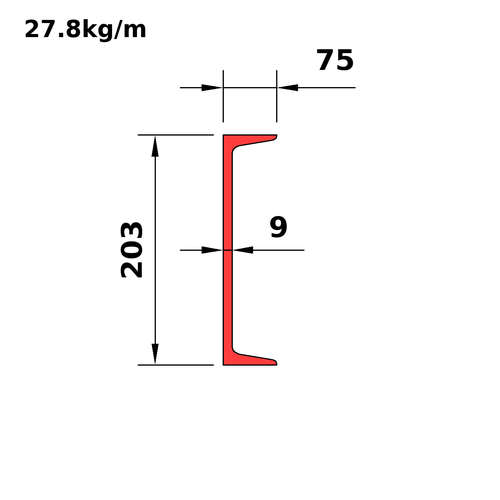

Dimensions
| Property | Value |
|---|---|
| Ds_i | MC8x18.7 |
| D | 203 |
| B | 75 |
| T | 12.7 |
| W | 9 |
| K | 28 |
| Slp | 0.1667 |
| Mass | 27.8 |
| Wt_i | 18.7 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | MC8x18.7 |
| Mass | 27.8 |
| Wt_i | 18.7 |
| Prp | |
| Avl | * |
| Shp | 6 |
| Grp | 1 |
| Use | 3 |
| BT | 5.91 |
| HW | 19.73 |
| Dn_m | 200 |
| A_A6 | 3550 |
| A_Th | 3520 |
| Ix | 21.6 |
| Sx | 213 |
| Rx | 78.2 |
| Iy | 1.66 |
| Sy | 30.7 |
| Ry | 21.7 |
| X | 21.1 |
| J | 157 |
| Cw | 11.7 |
| Xo | 43.3 |
| SA | 0.688 |
| Dn_i | 8 |
Full sortable table: Properties table for this category
