S Shapes - S150x26
S shapes are the original American Standard I-beam profile, characterised by a narrower flange and a steeper flange taper than modern wide-flange sections. They remain in the CISC tables for use in renovation and retrofit work matching existing structures, and occasionally in new construction where their proportions suit the application. Every S shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data drawn from the CISC Structural Section Tables.
Nearby Sections

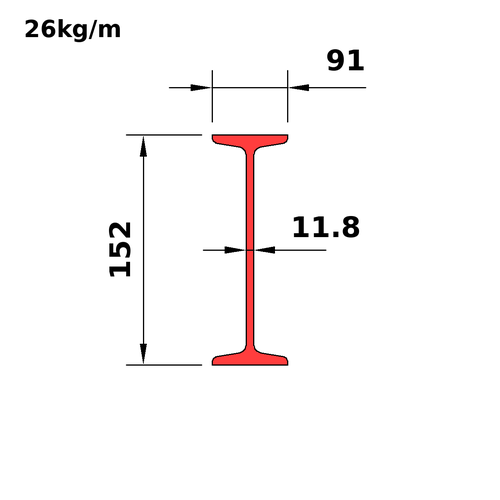

Dimensions
| Property | Value |
|---|---|
| Ds_i | S6x17.25 |
| D | 152 |
| B | 91 |
| T | 9.1 |
| W | 11.8 |
| K | 20 |
| K1 | 14 |
| T1 | 5.8 |
| T2 | 12.4 |
| Slp | 0.167 |
| Mass | 26 |
| Wt_i | 17.25 |
| A_Th | 3260 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | S6x17.25 |
| Mass | 26 |
| Wt_i | 17.25 |
| Prp | * |
| Avl | * |
| Shp | 4 |
| Grp | |
| Use | 3 |
| BT | 5 |
| HW | 11.34 |
| Dn_m | 150 |
| A_A6 | 3270 |
| A_Th | 3260 |
| Ix | 10.9 |
| Sx | 143 |
| Rx | 57.8 |
| Zx | 173 |
| Iy | 0.969 |
| Sy | 21.3 |
| Ry | 17.2 |
| Zy | 38.9 |
| J | 152 |
| Cw | 4.95 |
| SA | 0.644 |
| Dn_i | 6 |
Full sortable table: Properties table for this category
