S Shapes - S200x34

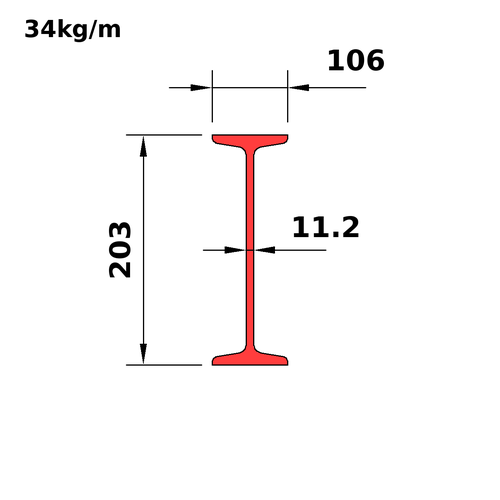

S shapes are the original American Standard I-beam profile, characterised by a narrower flange and a steeper flange taper than modern wide-flange sections. They remain in the CISC tables for use in renovation and retrofit work matching existing structures, and occasionally in new construction where their proportions suit the application. Every S shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data drawn from the CISC Structural Section Tables.
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Ds_i | S8x23 |
| D | 203 |
| B | 106 |
| T | 10.8 |
| W | 11.2 |
| K | 24 |
| K1 | 15 |
| T1 | 6.8 |
| T2 | 14.8 |
| Slp | 0.167 |
| Mass | 34 |
| Wt_i | 23 |
| A_Th | 4370 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | S8x23 |
| Mass | 34 |
| Wt_i | 23 |
| Prp | * |
| Avl | * |
| Shp | 4 |
| Grp | |
| Use | 3 |
| BT | 4.91 |
| HW | 16.2 |
| Dn_m | 200 |
| A_A6 | 4370 |
| A_Th | 4370 |
| Ix | 27 |
| Sx | 266 |
| Rx | 78.6 |
| Zx | 316 |
| Iy | 1.79 |
| Sy | 33.8 |
| Ry | 20.2 |
| Zy | 60.4 |
| J | 229 |
| Cw | 16.5 |
| SA | 0.808 |
| Dn_i | 8 |
Full sortable table: Properties table for this category
