S Shapes - S250x52

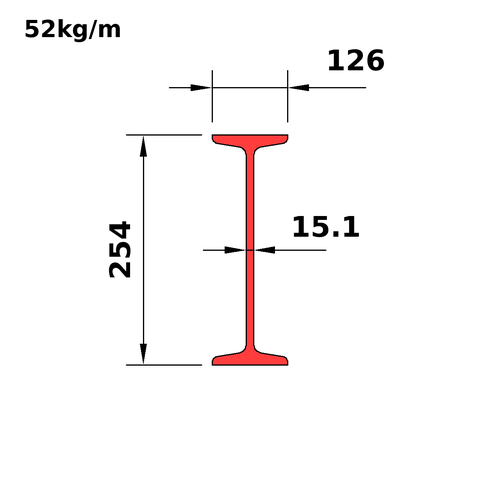

S shapes are the original American Standard I-beam profile, characterised by a narrower flange and a steeper flange taper than modern wide-flange sections. They remain in the CISC tables for use in renovation and retrofit work matching existing structures, and occasionally in new construction where their proportions suit the application. Every S shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data drawn from the CISC Structural Section Tables.
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Ds_i | S10x35 |
| D | 254 |
| B | 126 |
| T | 12.5 |
| W | 15.1 |
| K | 27 |
| K1 | 18 |
| T1 | 7.9 |
| T2 | 17.1 |
| Slp | 0.167 |
| Mass | 52 |
| Wt_i | 35 |
| A_Th | 6660 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | S10x35 |
| Mass | 52 |
| Wt_i | 35 |
| Prp | * |
| Avl | * |
| Shp | 4 |
| Grp | |
| Use | 3 |
| BT | 5.04 |
| HW | 15.17 |
| Dn_m | 250 |
| A_A6 | 6650 |
| A_Th | 6660 |
| Ix | 61.5 |
| Sx | 484 |
| Rx | 96.1 |
| Zx | 583 |
| Iy | 3.51 |
| Sy | 55.8 |
| Ry | 23 |
| Zy | 103 |
| J | 539 |
| Cw | 51.2 |
| SA | 0.982 |
| Dn_i | 10 |
Full sortable table: Properties table for this category
