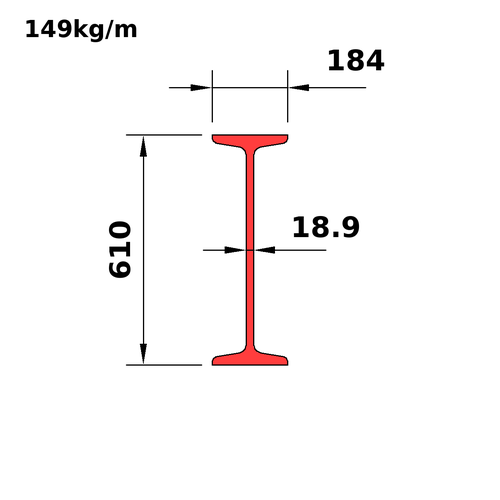

S Shapes - S610x149
S shapes are the original American Standard I-beam profile, characterised by a narrower flange and a steeper flange taper than modern wide-flange sections. They remain in the CISC tables for use in renovation and retrofit work matching existing structures, and occasionally in new construction where their proportions suit the application. Every S shape in the CISC 12 range is available here as a free CAD block, with full dimension and property data drawn from the CISC Structural Section Tables.
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Ds_i | S24x100 |
| D | 610 |
| B | 184 |
| T | 22.1 |
| W | 18.9 |
| K | 46 |
| K1 | 28 |
| T1 | 15.2 |
| T2 | 29 |
| Slp | 0.167 |
| Mass | 149 |
| Wt_i | 100 |
| A_Th | 18900 |
Full sortable table: Dimensions table for this category
Section Properties
| Property | Value |
|---|---|
| Ds_i | S24x100 |
| Mass | 149 |
| Wt_i | 100 |
| Prp | * |
| Avl | * |
| Shp | 4 |
| Grp | |
| Use | 3 |
| BT | 4.16 |
| HW | 29.94 |
| Dn_m | 610 |
| A_A6 | 18900 |
| A_Th | 18900 |
| Ix | 996 |
| Sx | 3270 |
| Rx | 229 |
| Zx | 3930 |
| Iy | 19.7 |
| Sy | 214 |
| Ry | 32.2 |
| Zy | 393 |
| J | 3150 |
| Cw | 1700 |
| SA | 1.92 |
| Dn_i | 24 |
Full sortable table: Properties table for this category
