HSS - ASTM A500 Square (HA) - HA178x178x16

Square Hollow Structural Sections to ASTM A500 combine the torsional stiffness of a closed tube with equal bending resistance about both axes, making them a go-to choice for columns, truss members, and any application where loads may come from more than one direction. Their flat, symmetrical faces simplify connection design and make them a favourite for exposed architectural steelwork as well as everyday structural framing. This family covers the full ASTM A500 square range as free CAD blocks, with outside dimensions, wall thickness and corner radii drawn from CISC 12.

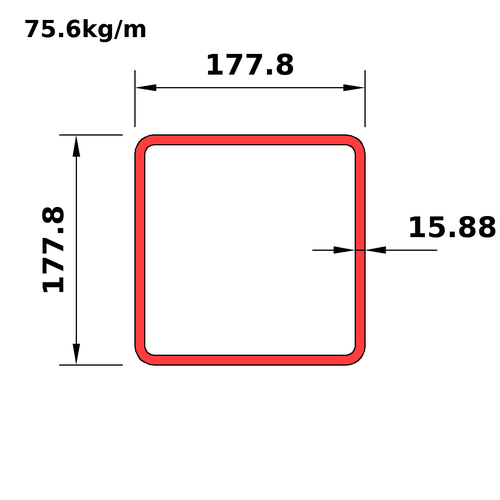

HA178x178x16
Select ZIP download

Select DWG download

Nearby Sections

Previous
HA203x203x4.8
This section
HA178x178x16
Next
HA178x178x13

Dimensions

PropertyValue
Ds_iHA7x7x0.625
D177.8
B177.8
T15.88
Tdes14.29
RI14.29
RO28.58
Mass75.6
Wt_i50.8
A_Th8820

Full sortable table: Dimensions table for this category

Section Properties

PropertyValue
Ds_iHA7x7x0.625
Mass75.6
Wt_i50.8
Prp*
Avl
Shp12
Use2
BT8.44
DT8.44
Dn_m178
A_Th8820
Ix38.1
Sx428
Rx65.7
Zx529
Iy38.1
Sy428
Ry65.7
Zy529
J64300
Crt3450
C753
SA0.662
Dn_i7
